SB Micro Sampling Port

The Alfa Laval SB Micro Sampling Port enables representative hygienic and microbiological samples to be taken under sterile conditions in small volumes from tanks and pipework. To help ensure product safety, the sampling port features a straightforward hygienic design with minimal components to make collecting samples mid-stream easy, convenient and accurate.

Enables small volume hygienic and microbiological samples to be taken from tanks and pipework

Safe, simple, aseptic sampling
Small sample size
Minimum impact to product
Superior hygiene
Versatile mounting

The SB Micro Sampling Port is specially designed for use within the brewery, food, dairy, beverage and many other industries.

Aseptic sampling for microbiological control

To help ensure food and beverage safety, the sampling port features a straightforward hygienic design with minimal components makes collecting samplings mid-stream easy, convenient and accurate.

Versatile mounting

Direct mounting on the tank wall, pipe wall, or extruded pipe ends in either a horizontal position or vertically with the closing cap facing downwards makes the valve versatile and suitable for a broad range of applications and provides the flexibility needed to meet your sampling requirements

Easy to clean

Hygienic design ensures optimum hygiene for representative sampling. When the port is located on the tank wall or pipe wall, the plug end that is flush with the wall is automatically cleaned during the routine Cleaning-in-Place (CIP) cycle. To minimize the risk of contamination, it is easy to sterilize the rest of the plug with alcohol before sampling.

Product benefits

Simple, hygienic design
Superior hygiene
Compact size

Як це працює

Construction

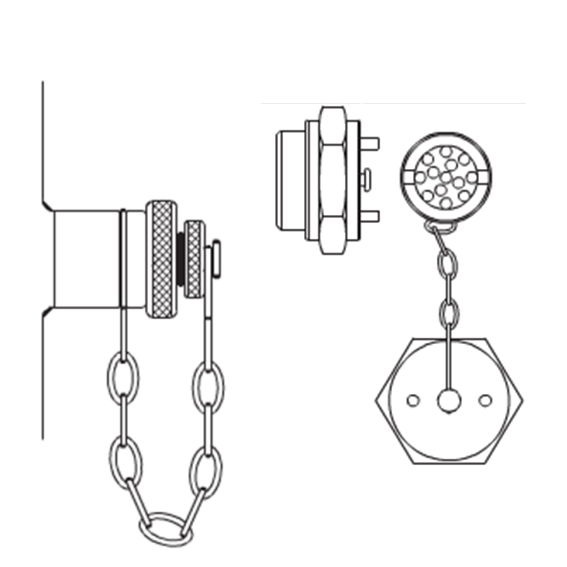

The sampling port consists of a housing made as a socket for direct welding into the tank wall or pipework, a rubber plug which is positioned by a press screw, an o-ring, chain and a closing cap. These different types of sockets are mounted:

Socket, Type T, is welded into a 25-mm diameter hole in a tank wall
Socket, Type P, is welded onto a pipe wall and, thereafter, an 8-mm hole is drilled
Socket, Type PC, is available for welding onto extruded pipe ends equal to 1” as well as DN25

Operating principle

To take a sampling, simply unscrew the closing cap and insert a one-mm hypodermic needle through the rubber plug.

Part of a broad valve range

Alfa Laval offers a comprehensive range of valves intended for hygienic applications in the dairy, food, beverage, home care, personal care, biotechnology and pharmaceuticals.

For a broader valve range, explore the different product categories: ball valves, butterfly valves, control/check valves, diaphragm valves, double seal valves, double seat valves, regulating valves, sample valves, shutter valves and single seat valves.
